Laser Cutting VS Plasma Cutting: Which Is Better

In the world of modern manufacturing and metalworking, precision cutting technologies play a pivotal role in shaping the products and structures that define industries. Among the many cutting methods available, laser cutting and plasma cutting stand out as two of the most commonly used techniques. Both technologies offer the ability to cut through various metals and materials with speed and accuracy, but they do so in very different ways. Understanding the fundamental differences between these two methods is crucial for industries that require high-quality, efficient, and cost-effective solutions for their production needs.
Laser cutting utilizes a concentrated beam of light to melt, burn, or vaporize material, resulting in clean, precise cuts. It is known for its ability to produce highly accurate and smooth finishes, making it ideal for applications where detail and quality are of the utmost importance. In contrast, plasma cutting involves the use of an ionized gas, or plasma, which is directed at the material to cut through metals by melting them. This method is generally faster and more cost-effective, especially for cutting thicker materials, but it can produce rougher edges and is less precise compared to laser cutting.
Both technologies are widely used across industries such as aerospace, automotive, construction, and sheet metal fabrication. However, each has its strengths and weaknesses depending on the specific needs of a project, such as material thickness, speed, precision, and overall cost. This article will explore the working principles of laser and plasma cutting, compare their advantages and disadvantages, and help you determine which method is best suited for your needs.

Laser Cutting Overview

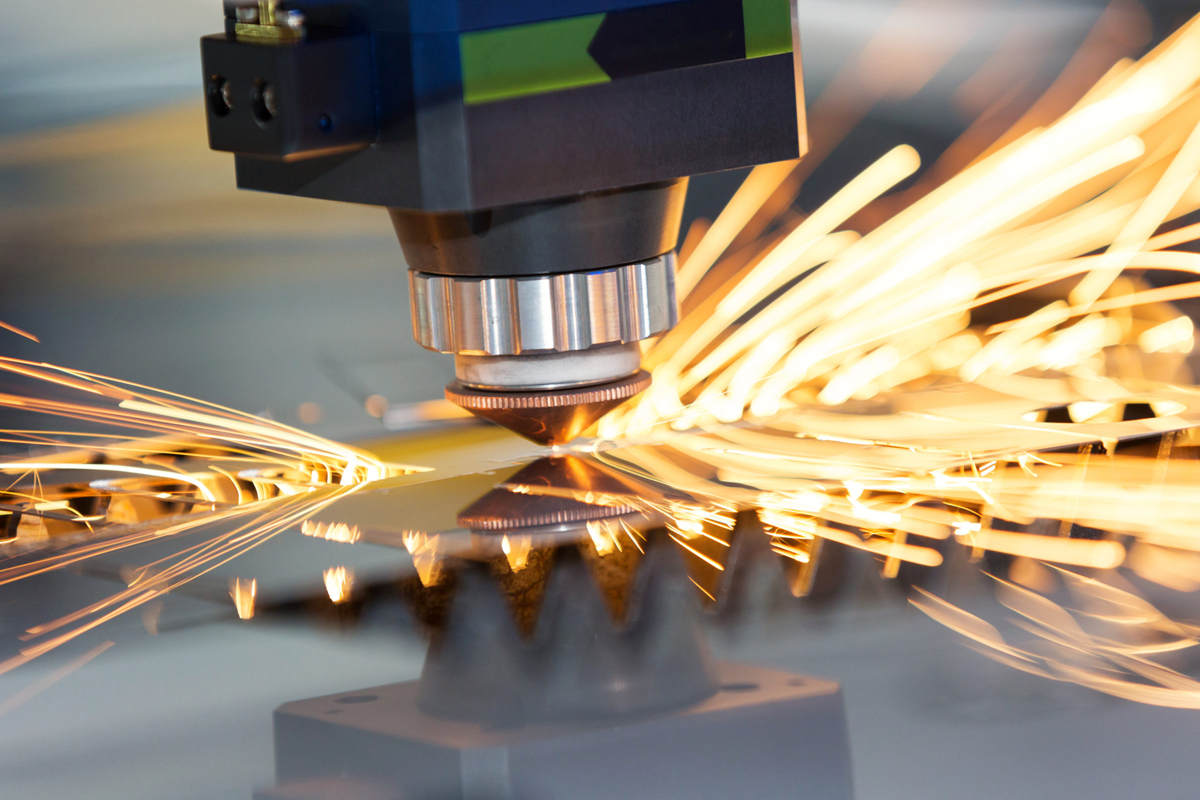

Laser cutting is a high-precision method of cutting materials using a focused laser beam to melt, burn, or vaporize a material, often metals, plastics, and composites. The laser’s intense heat can be concentrated on a small area, enabling high accuracy and clean, detailed cuts. This technique is used in a variety of industries, including automotive, aerospace, electronics, and sheet metal fabrication.

Working Principle

Laser cutting works by directing a high-powered laser beam onto the material’s surface. The laser generates intense heat at the point of contact, causing the material to melt or evaporate. An assist gas (usually oxygen or nitrogen) is often blown through the cut to remove molten material and aid in the cutting process. The precision of the laser beam, coupled with the ability to finely control the intensity and focus of the beam, allows for intricate and accurate cuts, even on thin materials or complex shapes.

Equipment Architecture

Laser cutting machines typically consist of the following key components:

Laser Source: This is the component that generates the laser beam. It can be a fiber, CO2, or solid-state laser, depending on the application.
Beam Delivery System: Mirrors or fiber optics guide the laser beam from the source to the cutting head.
Cutting Head: The cutting head focuses the laser beam onto the workpiece, and it often contains a nozzle through which assist gas is blown to help with cutting and cooling.
Control System: A CNC (computer numerical control) system manages the movement of the cutting head, the speed, and the power of the laser, ensuring precision.

Types of Laser Cutting

Several different types of lasers are used in laser cutting, each with unique characteristics, making them suitable for various materials and applications:

Fiber Laser Cutting: Fiber lasers use a solid-state laser amplified by fiber optic cables. These lasers are known for their efficiency, precision, and ability to cut both thin and thick materials, including metals like stainless steel and aluminum. They offer faster cutting speeds and require less maintenance compared to other types of lasers.
CO2 Laser Cutting: CO2 lasers are gas lasers that use a mixture of carbon dioxide, nitrogen, and hydrogen to generate a laser beam. These lasers are highly effective for cutting thicker materials, especially non-metal materials like plastics and wood. However, they are slower and less efficient compared to fiber lasers.
Nd:YAG Laser Cutting: Neodymium-doped yttrium aluminum garnet (Nd:YAG) lasers are solid-state lasers that offer high power and precision. They are particularly effective for cutting metals and other hard materials, but are typically more expensive to operate than CO2 lasers.
Disk Laser Cutting: Disk lasers use a disk-shaped solid-state laser, offering high power and efficiency. These lasers are often used in industrial applications that require high cutting speeds and precision. They are particularly useful in cutting thicker materials with better beam quality compared to CO2 lasers.
UV Laser Cutting: UV lasers use ultraviolet light to cut materials by causing rapid heating and vaporization. They are particularly suited for cutting materials like ceramics, glass, and thin plastics, providing precise cuts with minimal thermal damage to sensitive surfaces.

Advantages of Laser Cutting

Laser cutting offers several advantages over other cutting methods:

High Precision: Laser cutting allows for very fine and intricate cuts, with tolerances as tight as 0.1mm. This makes it ideal for applications that require detailed shapes and patterns.
Clean and Smooth Edges: The precision of the laser beam results in smooth, clean edges with minimal burrs, reducing the need for post-processing.
Versatility: Laser cutting can be used on a wide range of materials, including metals, plastics, wood, ceramics, and even fabrics.
No Tool Wear: Since the cutting is done by a laser beam rather than a physical tool, there is no wear and tear, which leads to less maintenance.
Minimal Heat Affected Zone (HAZ): Laser cutting results in a smaller heat-affected zone, reducing the risk of distortion or warping in the material.

Disadvantages of Laser Cutting

Despite its many advantages, laser cutting has some limitations:

High Equipment Cost: The initial cost of laser cutting systems can be significant, especially for high-power or specialized lasers. Additionally, the maintenance costs can be higher compared to simpler cutting methods.
Material Thickness Limitations: While laser cutting is highly effective for thin to medium-thickness materials, cutting very thick materials may be slower and less efficient compared to other methods like plasma cutting.
Energy Consumption: Lasers, particularly CO2 lasers, can consume a considerable amount of energy, making operational costs higher for certain applications.
Reflected Beam Hazards: Some materials, like reflective metals (e.g., aluminum), can reflect the laser beam, potentially causing damage to the machine or reducing cutting efficiency.

Applications of Laser Cutting

Laser cutting is used in a wide range of industries and applications:

Aerospace: Laser cutting is ideal for aerospace components where precision and high tolerances are essential. It is used to cut parts like turbine blades, engine components, and structural elements.
Automotive: The automotive industry relies on laser cutting for producing parts such as exhaust systems, body panels, and frames with high precision and repeatability.
Electronics: Laser cutting is used to create delicate components like printed circuit boards (PCBs) and semiconductor parts, as it can cut fine details with high accuracy.
Sheet Metal Fabrication: Laser cutting is commonly used in sheet metal fabrication to produce complex shapes and designs for machinery, equipment, and other products.
Signage and Arts: Laser cutting is also used in the creation of signage, decorative designs, and artwork, where fine details are crucial.

Plasma Cutting Overview

Plasma cutting is a widely used method for cutting electrically conductive materials, such as metals, through the use of a high-temperature plasma jet. Plasma, which is an ionized gas, is created by passing an electric current through a gas like air, nitrogen, or oxygen. The resulting plasma jet is hot enough to melt the material, and the pressure from the jet blows away the molten metal, resulting in a clean cut. Plasma cutting is known for its efficiency, speed, and cost-effectiveness, especially when cutting thicker materials.

Working Principle

The plasma cutting process begins by generating an electrical arc between an electrode inside the cutting torch and the material to be cut. The arc heats a gas, which is then forced through a nozzle at high velocity, turning the gas into plasma. This plasma jet reaches temperatures of up to 30,000℉ (16,650℃), allowing it to melt the material at the point of contact. The molten material is then blown away by the force of the plasma, resulting in a clean cut. Plasma cutting works best on metals that conduct electricity, such as steel, aluminum, and copper, and can be used for both thin and thick materials, though the speed and quality of the cut depend on the material thickness and plasma cutting system type.

Equipment Architecture

Plasma cutting systems typically consist of the following key components:

Power Supply: Provides the necessary electrical energy to generate the plasma arc. The power supply can be either a direct current (DC) or alternating current (AC) unit, depending on the type of plasma system being used.
Plasma Torch: The torch contains the electrode and nozzle, and it directs the plasma jet to the workpiece. The torch is typically handheld or mounted on a CNC (computer numerical control) table for automated cutting.
Gas Supply: An external gas supply is needed to generate the plasma. This could be compressed air, nitrogen, oxygen, or another suitable gas, depending on the material being cut.
Cutting Table (Optional): For automated or large-scale projects, a cutting table or CNC machine is used to guide the plasma torch with precision. This system is typically equipped with a computer that controls the movement of the torch based on the design specifications.

Types of Plasma Cutting

There are several types of plasma cutting systems, each designed to handle specific cutting needs. The main types include:

Conventional Plasma Cutting Conventional plasma cutting systems use a basic plasma arc to cut through metals. This method is widely used for cutting medium to thick materials and is often employed for general fabrication work. Conventional plasma systems are cost-effective but are limited in terms of precision and cut quality, especially when dealing with thinner materials.
High-Definition Plasma Cutting High-definition plasma cutting offers greater precision and improved cut quality over conventional plasma cutting. It uses advanced technology that refines the plasma arc, resulting in narrower kerfs and more accurate cuts. This system is particularly useful for high-tolerance applications where precision is important, such as in the aerospace, automotive, and shipbuilding industries. High-definition plasma systems are more expensive than conventional systems but offer superior cut quality and edge finish.
Fine Plasma Cutting: Fine plasma cutting is an advanced version of high-definition plasma cutting designed for cutting thin materials with very fine detail. It produces smoother edges and more precise cuts, making it ideal for applications that require intricate patterns or shapes in materials like sheet metal or stainless steel. Fine plasma cutting systems use a finer plasma arc, which results in even better cut quality and precision, but they are typically used for thinner metals due to the limitations of heat management.

Advantages of Plasma Cutting

Plasma cutting offers several key benefits, making it a popular choice for a variety of applications:

Cost-Effective: Plasma cutting is generally more affordable than laser cutting, both in terms of initial investment and operational costs. It is especially advantageous for large-scale cutting projects.
High Cutting Speed: Plasma cutting is faster than many other methods, particularly for thicker materials. It can cut through metals at speeds up to 20 times faster than laser cutting in some cases.
Versatility: Plasma cutting can be used to cut a wide range of metals, including steel, aluminum, brass, and copper. It is effective for cutting materials of varying thicknesses, from thin sheets to several inches thick.
Minimal Distortion: While plasma cutting can generate some heat, it typically causes less material distortion compared to other methods like oxy-fuel cutting.
Portability: Plasma cutting systems are often more portable and easier to set up compared to laser cutting systems. Smaller, handheld units are available, making it ideal for onsite applications and remote work.

Disadvantages of Plasma Cutting

Despite its many advantages, plasma cutting has some limitations:

Less Precision: While plasma cutting is good for most applications, it does not offer the same level of precision as laser cutting, particularly on thinner materials. The cut edges may also require additional finishing to achieve a smooth surface.
Rougher Edges: Plasma cuts often have rougher edges and more dross (residual material) than laser cuts, which may require post-processing, such as sanding or grinding, especially for cosmetic purposes.
Heat Affected Zone (HAZ): Plasma cutting generates more heat, which can result in a larger heat-affected zone. This can cause warping or distortion in thinner materials or in applications where tight tolerances are required.
Material Limitations: Plasma cutting works best on conductive metals and may not be suitable for materials like ceramics, glass, or plastics that do not conduct electricity. It also performs less effectively on materials with a reflective surface, such as aluminum, without special modifications.

Applications of Plasma Cutting

Plasma cutting is used across a wide range of industries for various applications, including:

Metal Fabrication: Plasma cutting is widely used in metal fabrication for tasks like cutting structural beams, sheet metal, and components used in machinery and equipment.
Shipbuilding: Plasma cutting is commonly employed in shipyards to cut through thick steel plates used in ship construction and repairs.
Automotive: Plasma cutting is used in automotive manufacturing for cutting steel body parts, frames, and exhaust systems, as it is efficient for both thick and thin metal sheets.
Construction: Plasma cutting is ideal for the construction industry, where it is used to cut large metal parts, structural steel, and even pipelines with speed and efficiency.
Art and Sign Making: Plasma cutting is also used for artistic applications, such as creating custom metal signs, sculptures, and decorative elements, thanks to its versatility and ability to create detailed designs.

Key Differences Between Laser Cutting and Plasma Cutting

Laser cutting and plasma cutting are both powerful methods of cutting metals and other materials, but they differ significantly in various aspects, from precision and speed to operating costs and material compatibility. Understanding these key differences can help select the appropriate cutting technology for specific project needs.

Precision and Accuracy

Laser Cutting: Known for its exceptional precision, laser cutting can achieve tight tolerances (as small as 0.1 mm) with high accuracy. The laser beam is highly focused, allowing for intricate cuts with little to no deviation from the design. This makes laser cutting ideal for applications where detail and fine tolerances are essential.
Plasma Cutting: Plasma cutting, while effective and faster for thicker materials, generally offers lower precision compared to laser cutting. The cut can have slight deviations, and the accuracy typically ranges from 0.2 mm to 1 mm, depending on the thickness of the material and the quality of the plasma cutting system.

Cut Edge Quality and Kerf Width

Laser Cutting: Laser cutting typically results in smooth, clean edges with minimal burrs or dross, especially on thin to medium-thickness materials. The kerf (cut width) is extremely narrow, often around 0.1 mm to 0.5 mm, providing a fine cut with minimal waste.
Plasma Cutting: Plasma cutting produces edges that may be rougher and more likely to have dross, requiring additional post-processing. The kerf width is typically wider than that of laser cutting, usually around 1 mm to 2 mm, and may vary depending on the material and thickness.

Material Compatibility

Laser Cutting: Laser cutting can be used on a variety of materials, including metals (stainless steel, aluminum, carbon steel), plastics, wood, glass, ceramics, and more. However, its effectiveness can be limited when cutting highly reflective metals like aluminum, unless a specialized laser system is used.
Plasma Cutting: Plasma cutting works primarily on electrically conductive materials, including steel, aluminum, brass, and copper. It is not effective on non-conductive materials like wood, glass, or plastics. Plasma cutting is highly efficient for cutting ferrous and non-ferrous metals, particularly in thicker gauges.

Heat Affected Zone (HAZ) and Deformation

Laser Cutting: Laser cutting produces a minimal heat-affected zone (HAZ), as the energy is concentrated on a small area of the material. This results in minimal distortion and a reduced risk of warping, making laser cutting ideal for precision parts that require tight tolerances.
Plasma Cutting: Plasma cutting generates a larger heat-affected zone due to the wider plasma arc. The heat can cause more material distortion and warping, especially in thinner materials. In some cases, this can lead to more post-cutting adjustments to achieve the desired shape and finish.

Material Thickness Limitations

Laser Cutting: Laser cutting is generally more effective for thinner materials, typically up to 40 mm for mild steel, depending on the type of laser used. Cutting thicker materials (especially beyond 50 mm) with laser cutting becomes slower and less efficient.
Plasma Cutting: Plasma cutting excels at cutting thicker materials, with some systems capable of cutting up to 150 mm or more of steel. The cutting speed for thicker materials is significantly higher compared to laser cutting, making plasma cutting the preferred choice for heavy-duty applications.

Cutting Speed and Productivity

Laser Cutting: Laser cutting can be slower than plasma cutting, especially for thicker materials. However, it offers high-speed cutting on thinner materials, with greater precision and less need for post-processing.
Plasma Cutting: Plasma cutting is generally faster than laser cutting, particularly for thicker materials. It can cut through thick metal plates at a much higher rate, which is why it is often the method of choice for large-scale production and industrial applications.

Capital Investment and ROI

Laser Cutting: Laser cutting systems tend to have a higher initial capital investment due to the advanced technology involved. The cost of the equipment, along with the need for skilled operators and higher energy consumption, means that ROI for laser cutting may take longer, especially in high-volume production. However, the precision and versatility can justify the investment in many high-end applications.
Plasma Cutting: Plasma cutting systems are generally less expensive than laser cutting systems. The lower capital investment, combined with its high cutting speed and ability to handle thicker materials, leads to a quicker ROI, particularly in industries where speed and cost-efficiency are critical.

Operating Cost Analysis

Laser Cutting: While laser cutting offers excellent precision and edge quality, it can have higher operating costs due to electricity consumption, especially for high-power lasers, and the cost of consumables like lenses and mirrors. Maintenance costs can also be higher due to the complexity of the equipment.
Plasma Cutting: Plasma cutting systems tend to have lower operating costs compared to lasers. The gas used for plasma generation is relatively inexpensive, and the overall energy consumption is lower for plasma cutting, particularly on thicker materials. However, consumables like electrodes and nozzles need to be replaced regularly, which adds to operational costs.

Maintenance Requirements

Laser Cutting: Laser cutting systems require regular maintenance to ensure optimal performance. This includes cleaning and replacing lenses, mirrors, and other optical components. The complexity of the laser and control systems means that maintenance can be more labor-intensive and costly.
Plasma Cutting: Plasma cutting systems also require routine maintenance, but it is generally less complex compared to laser cutting systems. Consumables, such as electrodes, nozzles, and shields, need to be replaced periodically. However, overall maintenance costs tend to be lower for plasma systems compared to laser systems.

Safety and Environmental Factors

Laser Cutting: Laser cutting systems can be dangerous if not handled properly. The high-powered laser beam poses a risk of eye damage or skin burns, and protective measures like laser safety glasses and shields are necessary. Additionally, the cutting process may produce harmful fumes and gases, particularly when cutting certain materials, requiring proper ventilation or fume extraction systems.
Plasma Cutting: Plasma cutting also presents safety concerns, particularly due to the high temperatures of the plasma arc. The process can produce harmful UV radiation, sparks, and molten metal debris, making it essential to wear protective gear, including gloves, goggles, and fire-resistant clothing. Similar to laser cutting, plasma cutting produces fumes and gases that must be properly managed through adequate ventilation systems.

How to Choose: Laser Cutting or Plasma Cutting

Selecting between laser cutting and plasma cutting depends largely on the specific needs of your project, such as the material type, thickness, precision, cost considerations, and production volume. Both cutting methods have their own set of advantages, and understanding when to use each can significantly impact the quality, efficiency, and cost-effectiveness of your manufacturing process. Here’s a guide to help you decide which cutting method is best suited for your application.

Choose Laser Cutting If

Extreme Precision and Fine Detail are Required: Laser cutting is the ideal choice when you need high precision and intricate designs. The laser beam is extremely focused, allowing for detailed cuts with very tight tolerances, as small as 0.1 mm. This makes it the best option for applications requiring fine patterns, small holes, or complex geometries that demand precision.
Thin Materials or Very Lightweight Parts: If you are working with thin materials, laser cutting provides clean, sharp edges without significant heat distortion. It’s particularly effective for materials up to 20 mm thick. Laser cutting can achieve higher cutting speeds and better quality on these materials than plasma cutting, making it a superior choice for delicate or lightweight parts.
Non-Metal or Reflective Materials: Laser cutting can easily handle non-metal materials like plastics, wood, glass, and ceramics. It’s also an excellent choice for reflective materials, such as aluminum or copper, which can be problematic for plasma cutting unless specialized equipment is used. The versatility of laser cutting across materials makes it a great option when cutting a variety of material types is necessary.
Parts Require Little to No Post-Processing: Laser cutting produces smooth, clean edges with minimal burrs or dross. Because of this, parts cut with lasers often require little to no additional finishing work, which can save both time and money on post-processing steps like sanding, grinding, or deburring.
High Volume Production of Small/Medium Parts: When producing a high volume of small to medium-sized parts, laser cutting is efficient and ideal due to its precision, speed, and consistency. The system can be easily automated with CNC machines for continuous, high-volume production, making it a reliable option for mass production.
Available Budget for Investment: While the initial investment in a laser cutting system is typically higher than plasma cutting, it may be justified if your operations require the precision and versatility that laser cutting offers. If you have the available budget for equipment and are looking for long-term productivity, laser cutting systems provide excellent ROI in the right circumstances.
Minimal Heat Affected Zone (HAZ) or Distortion Allowed: If minimizing heat-affected zones (HAZ) and material distortion is critical to the integrity of the part, laser cutting is a better option. The focused laser minimizes the thermal effect on the surrounding material, reducing the risk of warping or dimensional changes, especially on thin metals and intricate parts.

Choose Plasma Cutting If

Thick Materials are the Norm: Plasma cutting excels at cutting thicker materials, particularly for plates over 10 mm thick, and it can cut through materials up to 150 mm or more, depending on the plasma system. For projects involving thicker metals like structural steel, plasma cutting offers high-speed cutting capabilities, making it more efficient than laser cutting for heavy-duty material.
Ultimate Edge Quality is Not Critical: Plasma cutting is an excellent option when edge quality is less critical. While it provides fast and effective cuts, the edges can sometimes be rough, with a wider kerf and dross formation. If post-processing (such as grinding or sanding) is acceptable, plasma cutting can still deliver good results at a lower cost.
Cost Sensitivity / Budget Constraints: If budget is a major consideration and the cutting application doesn’t require the ultra-high precision of laser cutting, plasma cutting is more affordable. Plasma systems typically have a lower initial investment and operating costs, offering a more cost-effective solution for businesses with limited budgets, especially for heavy-duty applications.
Cutting Primarily Common Metals with Moderate Precision: Plasma cutting is ideal for cutting ferrous metals (like carbon steel) and non-ferrous metals (like aluminum and copper) when moderate precision is sufficient. It’s well-suited for applications where the highest level of detail and finish is not critical but where speed and efficiency are more important.
Large Part Profiles or Low Batch Counts: Plasma cutting is well-suited for large part profiles or when you need to cut larger sheets of material quickly. If you are working with low batch counts or need to cut fewer parts with a quick turnaround time, plasma cutting provides high throughput without the investment needed for complex, high-precision laser systems.
Portability and On-Site Work: Plasma cutting systems are typically more portable than laser systems, making them an excellent choice for on-site cutting or mobile applications. Whether in construction, shipbuilding, or other industrial settings, plasma cutters can be easily moved to different locations for cutting large pieces of material.
Ease of Maintenance and Use: Plasma cutting systems are generally easier to maintain and operate than laser systems. They have fewer components that require regular maintenance, and many modern plasma cutters are user-friendly, making them more suitable for environments where simplicity and quick setup are priorities. For those who need to minimize downtime and maintain high productivity, plasma systems offer ease of use with low maintenance costs.

Choose Laser Cutting if you require extreme precision, fine detail, and clean edges, especially for thin or delicate materials, or if your parts require little to no post-processing. Laser cutting is also ideal if you have the budget for high-quality equipment, and minimal distortion is a must. It is perfect for industries that need high-volume production with complex parts and varying materials.
Choose Plasma Cutting if you regularly cut thick materials, need faster cutting speeds for large parts, and are cost-sensitive or on a tight budget. Plasma cutting is ideal when edge quality is not the most important factor, and it’s especially effective for common metals in industrial and on-site cutting applications.

Summary

Laser cutting and plasma cutting are both popular methods for cutting metals and other materials, each with its distinct advantages and ideal applications. Laser cutting is known for its exceptional precision, clean edges, and minimal heat-affected zones, making it the preferred choice for tasks requiring high accuracy and intricate designs. It excels with thin materials, non-metal materials, and situations where post-processing is minimal. However, laser cutting systems typically require a higher initial investment and are better suited for high-precision work, often in industries such as aerospace, automotive, and electronics.
On the other hand, plasma cutting is a cost-effective, fast, and versatile method, particularly suited for cutting thicker materials and common metals at higher speeds. While it may not achieve the same level of edge quality as laser cutting, plasma cutting is ideal for large-scale projects, especially in industries like construction, shipbuilding, and metal fabrication. The system is easier to maintain and offers more portability, making it a go-to for on-site work and applications with large or heavy parts.
Ultimately, the choice between laser and plasma cutting depends on material thickness, precision requirements, production volume, and budget constraints. By understanding the strengths and limitations of each technology, manufacturers can make informed decisions to optimize both cost and output for their specific needs.
